Capacitor
A capacitor is an electronic component used to store and release electrical energy in a circuit. It is a passive component with the ability to store an electrical charge temporarily, and it plays an important role in various types of circuits. Capacitors are commonly used for smoothing, filtering, energy storage, and timing applications.
Key Features of a Capacitor:
Two Conductive Plates: A capacitor consists of two conductive plates separated by an insulating material called the dielectric (which could be air, ceramic, paper, plastic, or other materials).
Capacitance (C): The capacitance is the ability of the capacitor to store charge. It is measured in farads (F), with commonly used units like microfarads (µF), nanofarads (nF), and picofarads (pF) for most practical applications.
1 Farad = 1 Coulomb/Volt
Larger capacitances are typically used for power supply filtering, while smaller capacitances are often used in signal processing and timing.
Voltage Rating: Every capacitor has a voltage rating, which indicates the maximum voltage the capacitor can handle before it breaks down and possibly fails.
Dielectric Material: The insulating material between the plates (e.g., ceramic, polyester, tantalum, or electrolytic) affects the capacitor's performance and characteristics, such as temperature stability, resistance to breakdown, and leakage current.
Basic Operation:
Charging: When a voltage is applied to the capacitor, electrons accumulate on one of the plates, creating a positive charge on the other plate. The capacitor charges up to the supply voltage, with the amount of charge stored being proportional to the voltage and capacitance.
Discharging: When the capacitor is disconnected from the voltage source, it releases its stored charge. In a discharge state, the voltage across the capacitor gradually decreases as the charge flows out.

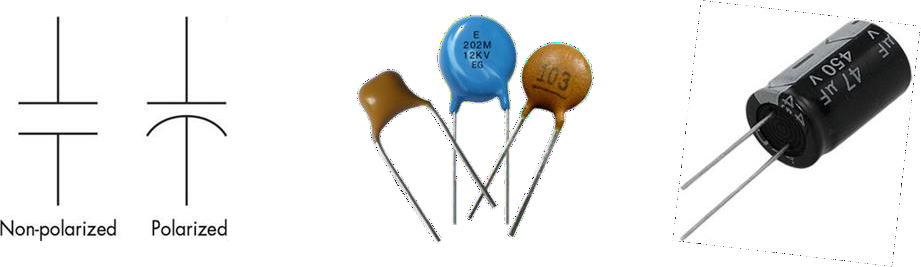

Types of Capacitors:
Ceramic Capacitors: Small, inexpensive, and commonly used in low-voltage, high-frequency applications like decoupling, bypassing, and filtering.
Electrolytic Capacitors: Large capacitance values (typically in the range of microfarads to thousands of microfarads) but with polarity (must be installed correctly). Commonly used in power supply circuits and energy storage.
Tantalum Capacitors: Known for stable performance and compact size, commonly used in precision electronic circuits.
Film Capacitors: Made with a thin plastic film dielectric and used for higher voltage applications.
Supercapacitors (Ultracapacitors): Have very high capacitance values, useful for energy storage and power delivery applications, often seen in backup power or energy harvesting systems.
Applications of Capacitors:
Energy Storage: Capacitors can store energy and release it when needed. This is particularly useful in power supply circuits or for energy backup.
Filtering and Smoothing:
In power supplies, capacitors filter out AC signals (like ripple) from DC voltage, smoothing the output.
They are also used in audio circuits to remove unwanted noise or to smooth the output from rectifiers in DC power supplies.
Timing and Oscillators:
Capacitors are key in timing circuits (such as in RC circuits), where they work with resistors to create time delays or oscillating signals.
Used in oscillators for generating alternating signals, like in radio-frequency circuits or clocks.
Coupling and Decoupling:
Coupling Capacitors: Used to couple or pass an AC signal from one stage to another while blocking DC.
Decoupling Capacitors: Used to decouple or filter out noise from power lines, especially in digital circuits to prevent interference from power supply noise.
Energy Harvesting: Capacitors are used in systems like regenerative braking in electric vehicles or energy storage in renewable energy systems.
Key Characteristics:
Capacitance: The amount of charge the capacitor can store per unit of voltage.
ESR (Equivalent Series Resistance): A small amount of resistance that a real capacitor exhibits, which affects its efficiency, especially at high frequencies.
Leakage Current: A small current that may flow through a capacitor even when it's supposed to be "disconnected" from a power source, particularly in electrolytic capacitors.
Common Issues and Failures:
Over-voltage: Applying a voltage higher than the rated voltage can cause the capacitor to fail.
Temperature Sensitivity: Capacitors can degrade if exposed to high temperatures for long periods.
Aging: Over time, some types of capacitors (especially electrolytics) lose capacitance, affecting performance.
