Fuse
A fuse is a crucial safety device used in electrical circuits to protect electrical components from overcurrent conditions that could lead to overheating, fires, or damage. It works by breaking the circuit when the current flow exceeds a predetermined safe level, thereby preventing further damage to the system. Below is an overview of key aspects of fuses:
1. Basic Functionality
Overcurrent Protection: The primary function of a fuse is to protect electrical circuits by interrupting the flow of electrical current if it exceeds a certain threshold. This is done by using a wire or element inside the fuse that melts when exposed to excessive current.
Melting Element: Fuses contain a thin wire or metal strip made of a material with a low melting point. When the current exceeds the fuse's rating, the heat generated by the excess current causes the wire to melt, which physically breaks the circuit and stops the flow of electricity.
One-Time Use: Once a fuse blows (the wire melts), it cannot be reused and must be replaced.
2. Types of Fuses
Fuses come in various designs and ratings, with each type suited for specific applications.
Cartridge Fuses: These are cylindrical fuses commonly used in industrial and household applications. They may have glass or ceramic bodies, and the wire element is usually housed inside.
Blade Fuses: Typically used in automotive applications, these fuses are small, flat, and have a blade-like structure that fits into a fuse holder.

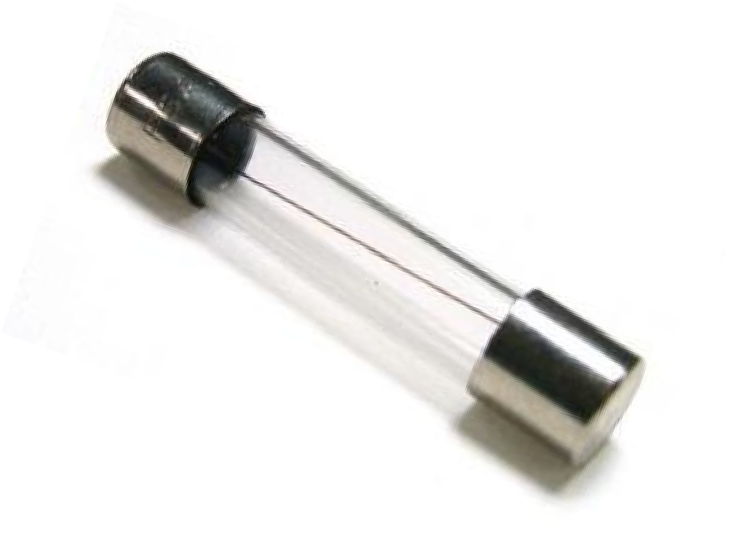

Glass Tube Fuses: These fuses have a transparent glass tube and are often used in low-voltage applications.
Resettable Fuses (PTC - Positive Temperature Coefficient): Unlike regular fuses, PTC fuses are resettable. When the current exceeds a certain value, they increase in resistance and effectively "open" the circuit, but they return to their normal state once the current drops to a safe level.
3. Fuse Ratings
Fuses are rated based on the amount of current they can carry before blowing. These ratings are important to select the correct fuse for a given circuit:
Current Rating: The maximum current the fuse can handle without blowing. For instance, a fuse rated for 10A will blow if the current exceeds 10 amps.
Voltage Rating: The maximum voltage at which the fuse can safely operate. Exceeding the voltage rating could result in the fuse not effectively breaking the circuit or could cause an electrical arc.
Time-Current Characteristics: Fuses are categorized into different classes based on how quickly they react to overcurrent conditions. Some fuses are "fast-blow," while others are "slow-blow," meaning they tolerate brief surges in current before blowing.
4. Applications of Fuses
Home Appliances: Fuses are used in household appliances to prevent damage from power surges or faults.
Automotive: In cars, fuses protect electrical components like the stereo, lighting systems, and other essential electrical parts.
Industrial Equipment: Fuses safeguard large machines and systems from overcurrent conditions that could cause overheating or fire.
Power Supply Circuits: In power supplies, fuses prevent damage due to overcurrent, ensuring the safety of both the device and its user.
5. Advantages of Fuses
Simplicity: Fuses are simple devices with no moving parts, making them reliable and easy to install.
Cost-Effective: They are inexpensive to produce and replace, making them a low-cost solution for overcurrent protection.
Rapid Response: Fuses react very quickly to excess current, limiting damage to the circuit or equipment.
6. Disadvantages of Fuses
One-Time Use: Fuses must be replaced once blown, unlike circuit breakers, which can be reset. This can lead to downtime or additional cost if a fuse blows.
Less Precision: While fuses are effective in providing basic protection, they are not as precise as more advanced protection devices like circuit breakers in some applications.
