Potentiometer
A potentiometer (also known as a variable resistor) is an electrical component that allows you to adjust the resistance within a circuit. It typically consists of three terminals and a resistive element with a sliding contact (wiper) that moves along the resistive material. This adjustment changes the resistance between the two outer terminals, making the potentiometer useful for controlling voltage, current, and other circuit parameters.
Key Features:
Three Terminals:
Two fixed terminals: Connected to the resistive element.
One movable terminal (wiper): Connected to the sliding contact that moves across the resistive element.
Adjustable Resistance: The position of the wiper determines the resistance between the wiper and the outer terminals, enabling you to fine-tune the resistance in a circuit.

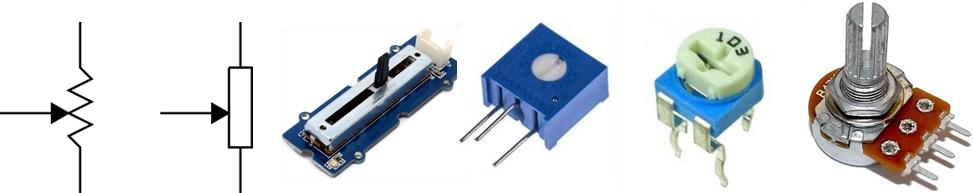

Types of Potentiometers:
Linear potentiometer: The resistance changes linearly as the wiper moves.
Logarithmic (audio) potentiometer: The resistance changes logarithmically, often used in audio equipment for volume control.
Applications:
Volume control in audio devices.
Brightness control in lights.
Calibration of circuits and devices.
Position sensing in certain sensors.
How It Works:
The potentiometer has a resistive material (such as carbon or cermet) that spans between two fixed terminals.
As the wiper moves along the resistive element, it either increases or decreases the resistance between the wiper and the fixed terminals, thus adjusting the output voltage.
In voltage divider circuits, the potentiometer can provide a variable voltage by taking the voltage between the wiper and one of the fixed terminals.
Common Uses:
Volume Control: Potentiometers are commonly used as volume knobs on audio equipment (like radios and amplifiers), where they adjust the gain of the signal.
Position Sensing: In robotics and machinery, potentiometers can act as sensors to detect angular position, providing feedback to control systems.
Differences from Other
Resistors:While a fixed resistor provides a constant resistance value, a potentiometer allows for manual adjustment, making it highly versatile in applications where dynamic control is needed.
Would you like to know more about how to use a potentiometer in a specific project?
