Resistor
A resistor is a fundamental electronic component used to control the flow of electric current in a circuit. It limits or regulates the amount of current that can flow through the circuit, thereby protecting other components from excess current, controlling voltage levels, and enabling various functions in electronic devices.
1. Basic Function of a Resistor
The primary role of a resistor is to limit current and to manage voltage within an electrical circuit. It does this by providing resistance to the flow of electric current. This resistance is measured in ohms (Ω), and it follows Ohm’s Law, which states:
𝑉=𝐼×𝑅
V=I×R
Where:
𝑉
V is the voltage across the resistor (in volts),
𝐼
I is the current flowing through the resistor (in amperes),
𝑅
R is the resistance (in ohms).
In essence, a resistor "dissipates" electrical energy in the form of heat, converting some of the electrical energy into thermal energy, which is why resistors can become warm or hot under heavy load.
2. Types of Resistors
There are several types of resistors, each suited for different applications:
Fixed Resistors: These resistors have a set resistance value that does not change. They are widely used in electronic circuits and come in various forms such as:
Carbon Film Resistors: Made from a carbon-based film, these are the most common type of fixed resistors.
Metal Film Resistors: These have a more precise resistance value than carbon film resistors and are commonly used in high-accuracy circuits.
Wire-Wound Resistors: These resistors are made by winding a resistive wire around a core. They are used for high-power applications due to their ability to handle high currents and dissipate heat effectively.
Ceramic Resistors: Typically used in high-voltage and high-power applications, these resistors have a ceramic body for better heat dissipation.
Variable Resistors (Potentiometers and Rheostats): These resistors allow the resistance to be adjusted manually. Common types include:
Potentiometers: Used for adjusting voltage levels, for example, in volume controls or light dimmers.
Rheostats: Typically used to control current in circuits, like in motor speed controls or dimmer switches.
Specialty Resistors:
Thermistors: These resistors change resistance with temperature. They are classified into two types:
NTC (Negative Temperature Coefficient) thermistors, which decrease in resistance as temperature increases.
PTC (Positive Temperature Coefficient) thermistors, which increase in resistance as temperature increases.
Light Dependent Resistors (LDRs): These resistors change their resistance based on the amount of light they receive, commonly used in light-sensitive circuits (e.g., street lighting).
Fusible Resistors: These resistors serve as both a resistor and a fuse, meaning they act as a protective element that will "blow" or break the circuit if the current exceeds a certain threshold.
3. Resistor Specifications
Resistance: The resistance of a resistor is measured in ohms (Ω). The higher the resistance, the more it resists the flow of current. Resistor values are typically marked with a color code or numerical value
.
Tolerance: Resistors have a tolerance value, which tells you how much the actual resistance can vary from the nominal value. For example, a resistor with a 5% tolerance could have a resistance value anywhere from 5% below to 5% above its rated value.
Power Rating: Resistors are rated for how much power (in watts) they can safely dissipate without overheating. Common power ratings include 1/4 W, 1/2 W, 1 W, etc. Exceeding the power rating will cause the resistor to overheat and potentially fail.
Temperature Coefficient: This indicates how the resistance of a resistor changes with temperature. A low temperature coefficient means the resistor's value is relatively stable with temperature fluctuations.
4. Resistor Color Code

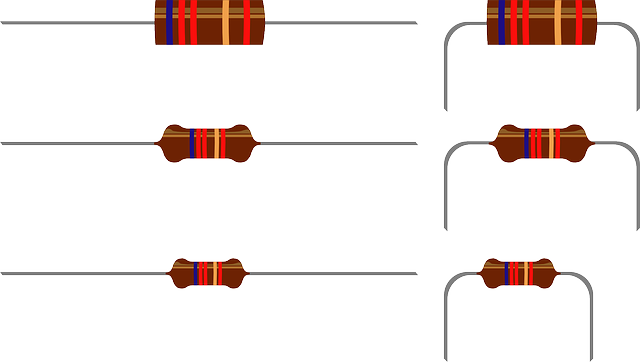

Many resistors have color bands printed on them to indicate their resistance value and tolerance. The color code is a standardized way of representing these values:
The first two or three bands represent digits.
The third band represents the multiplier (how many zeros to add).
The last band (if present) indicates the tolerance.
Example: A resistor with the color bands Red, Red, Brown, Gold would be calculated as:
Red = 2
Red = 2
Brown = Multiplier of 10 (i.e., 2 and 2 = 22, then 22 × 10 = 220 ohms)
Gold = ±5% tolerance
5. Applications of Resistors
Resistors are used in virtually all electronic devices and circuits. Common applications include:
Current Limiting: Protecting components such as LEDs or transistors from excessive current by limiting the flow of current.
Voltage Division: Creating different voltage levels in circuits using a voltage divider made of two resistors.
Signal Conditioning: Resistors help filter or modify signals in communication systems, sensors, and audio equipment.
Heating Elements: Wire-wound resistors are often used as heating elements in appliances like toasters or electric heaters.
Timing Circuits: In conjunction with capacitors, resistors are used in circuits that create time delays (e.g., in RC timing circuits).
6. Choosing the Right Resistor
When selecting a resistor for a specific application, you need to consider:
Required Resistance: Determine the required resistance based on Ohm's Law and the desired current or voltage in your circuit.
Power Rating: Ensure that the resistor can handle the power dissipation without overheating.
Tolerance: Choose a resistor with the appropriate tolerance based on the precision needed in your application.
Environmental Conditions: Consider factors like temperature and humidity that could affect the resistor's performance.
7. Resistor Safety
While resistors are generally simple and safe components, it's important to:
Avoid Overloading: Exceeding a resistor’s power rating can cause it to overheat, burn, or even cause fire hazards.
Handle with Care: When working with resistors in high-power applications, ensure adequate ventilation or heat dissipation to prevent overheating.
Conclusion
Resistors are essential components in electronics, serving to regulate current, protect devices, and modify signals. They are simple but versatile, with a wide range of types, sizes, and applications across all fields of electrical and electronic engineering. Understanding the specifications and proper use of resistors is key to designing and troubleshooting safe and effective circuits.
